K.D.S Vertically Moving Technology Compatible With All

We are geared towards carving a niche in hospital elevators manufacturers with supreme quality, trustworthy and safe hospital elevators that are also known by the name of bed passenger elevators. KDS Elevator manufacturers the hospital elevators in Delhi, Noida, Gurugram, Dehradun, Rishikesh, Haridwar that offer variable carrying capacity that ranges from huge 1600 kgs to 2000 kgs with the requisite speeds and security features for the user. Such elevators are designed considering the space required, hygienic rules to follow and the precautions necessary to be considered even at the time of emergency or in case there is unexpected electricity cut.

  • Hospital Lift Elevator Manufacturers
  • Hospital Elevators Manufacturers
  • Hospital Lift Manufacturers
  • Hospital Elevators Manufacturers

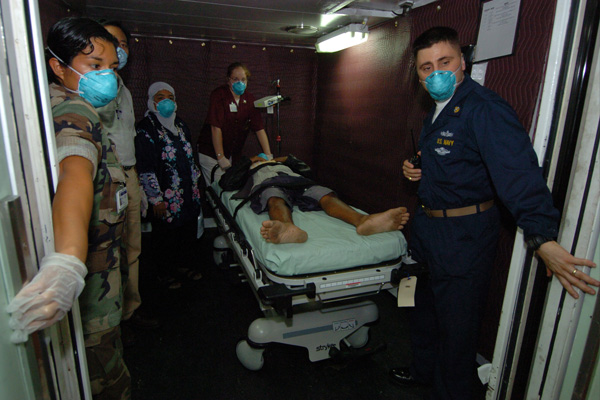

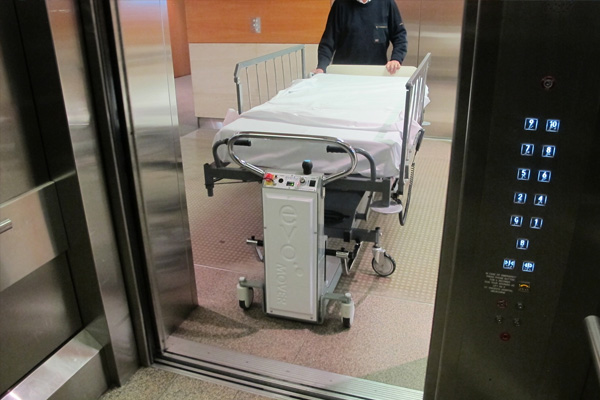

As the leading hospital elevators manufacturers and suppliers in Delhi, Dehradun, Rishikesh, Haridwar, Noida, and Gurugram., we believe in providing nothing less than the premium quality elevator service in various architectural designs and infrastructures. Hospital elevators are primarily for vertical movement of stretchers and patients made with great workmanship and trouble free performance. This elevator comes in various capacities for stretcher and patient which require 100% jerk free, related critical care equipment, hospital staff. These elevators are designed to meet very high standards of safety in hospitals, nursing homes and other health care centres.

As hospital elevators suppliers, we have a competitive edge in manufacturing lifts that range from semi-auto, hydraulic and fully automatic that allows the vertical transportation of bed, stretchers, equipment, machines, food trolleys, etc. along with the patients, hospital staff and other individuals for easy movement. Experience 100% jerk-free movement in the vertical front not only at the hospitals but also in the health care centres, nursing homes, old age homes, etc. The robustly constructed hospital elevator lift offers welded seams, a waterproof environment and ability to maintain the highest standard of hygiene. We provide hospital elevators installation, servicing, maintenance and modernisation at various locations throughout India, such as Delhi, Dehradun, Rishikesh, Haridwar, Noida, and Gurugram with high-end performance and low-cost maintenance.

Hospital Elevators Standard Features


No. of Passengers Load K.g Car (A) Width Car (B) Depth Shaft (C) Width Shaft (D) Depth Opening (E) M/C Room (F) Width M/C Room (G) Depth M/C Room (H) Height Pit Depth (I) Over head (J)
6 408 1100 1000 1800 1600 700 3300 4100 2750 1500 4250
8 544 1300 1100 1800 1800 800 3300 4300 2750 1500 4250
10 680 1350 1300 1900 2000 800 3400 4500 2750 1500 4250
13 884 2000 1100 2500 1800 900 4000 4300 2750 1500 4250
16 1088 2000 1300 2500 2000 1000 4000 4500 2750 1500 4250
20 1360 2000 1550 2500 2300 1000 4000 4800 2750 1500 4250
24 1632 2150 1650 2700 2400 1200 4200 4900 2750 1500 4250

Our aim to provide great customer service 24/7 in Delhi, Noida, Gurugram, Dehradun, Rishikesh, Haridwar.
